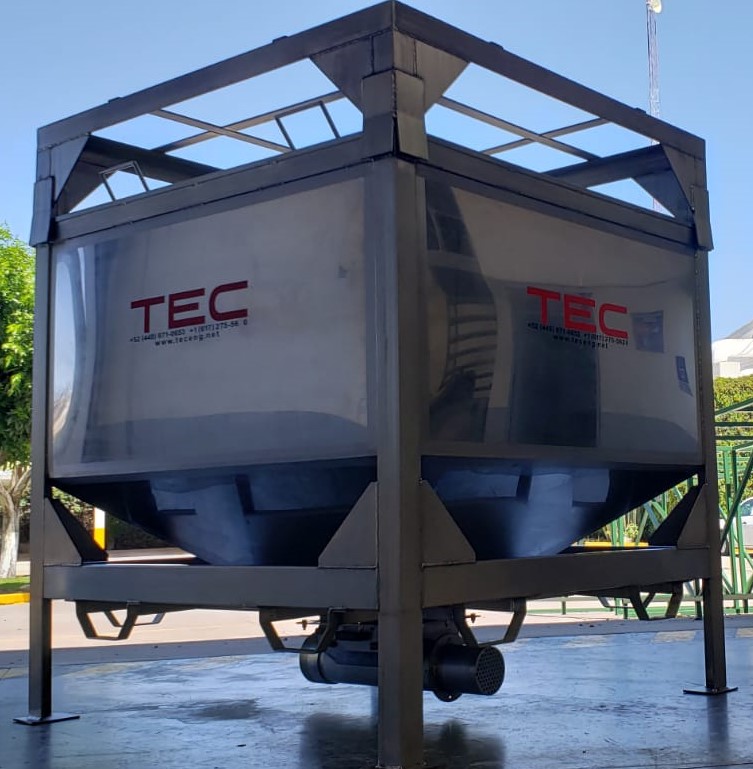

A Resin Hopper that would allow offloading resin pellets from a supersack bag into the bin and transferred via hose into a bulk truck tanker.
Portable Resin Hopper Unit to be able to transfer easily between warehouses.
Resin Hopper Unit with the ability for a bulk truck tanker, which has a pneumatic system to suck the resin from the bin using a hose.
The Resin Hopper Unit will hold at a max one supersack bag. The weight of the resin inside the supersack bag is usually 1.1 metric tons ( 2,425 lbs.).
Bulk density for the resin can vary, however, we can use 53 (lbs./ft3 ) +/- 2.0
The Resin Hopper Unit has rear earth permanent magnet to catch ferrous material.
DITAILED SYSTEM EQUIPMENT
- - Stainless steel 304 12 ga hopper and frame construccion
- - 50 cubic feet stainless steel hopper.
- - Capacity loaded with up to 3,000lb.
- - Equipped with four (4) 5” casters for easy movement.
- - 6” – NPT threaded connection made of stainless steel with a quick connect fitting.
- - Bottom Discharge CONAIR Model.
- - Magnetic Bars
