Solutions CLOSURES / CLOSURE COOLING SYSTEMS

DESCRIPTION

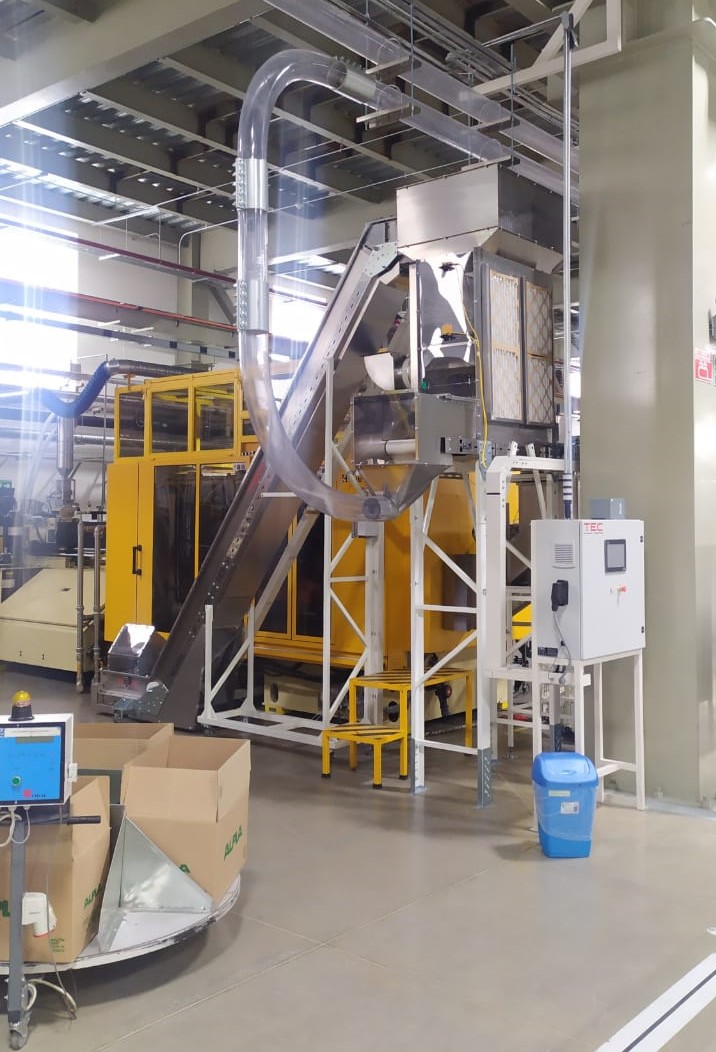

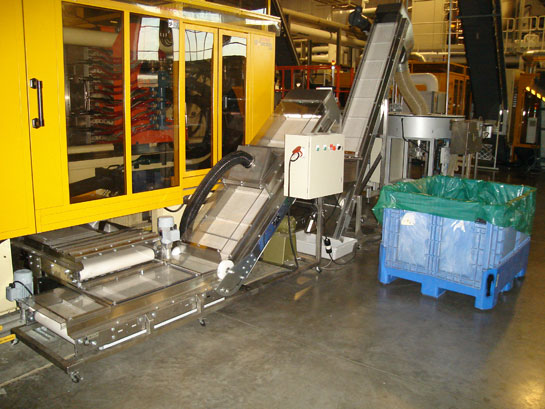

The TEC Closure Cooling System offers reduced cycle time and increased productivity for plastic closure production lines. Our solution is a simple and cost efficient solution that receives closures from the compressor at a temperature of 90-95º C, and after 12-15 minutes delivers these closures at 3 or 4º C higher than the ambient temperature.

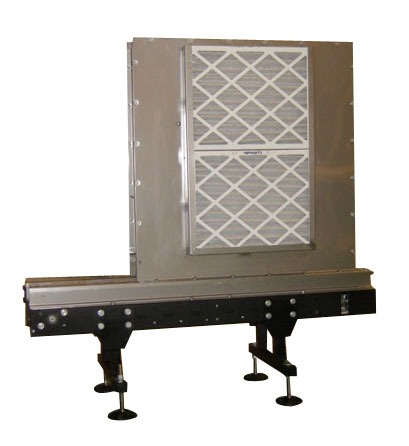

The TEC Closure Cooling System is composed of three main components:

  • Cooling Chamber: Its reception hopper receives the closures directly from the compressor’s unloading conveyor. It includes inner pressure relieve deflectors to avoid closure deformation and damage.

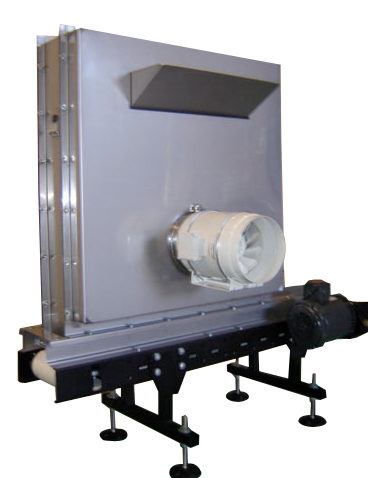

  • High Volume Fan: To suction and remove the heat given off from the closures and allow ambient temperature air to cool the closures.
  • Discharge Conveyor: Removes the closures slowly from the cooling box and fees them to storage containers or the production line.








TECHINICAL INFORMATION

COOLER CHARACTERISTICS

All TEC Closures Cooling Systems include the following features:

  • Cooling Chamber and Reception Hopper fabricated in 16 Gage Stainless Steel.
  • High Volume Fan.
  • Replaceable / Washable Air Filter.
  • One TEC, Eco Quality Series, Horizontal Conveyor to unload cooler.
